8 inch (203 mm) Aluminum Platens

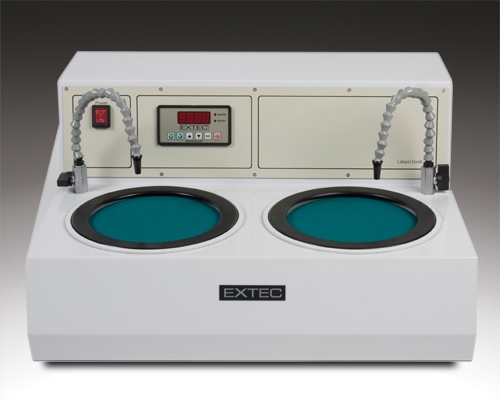

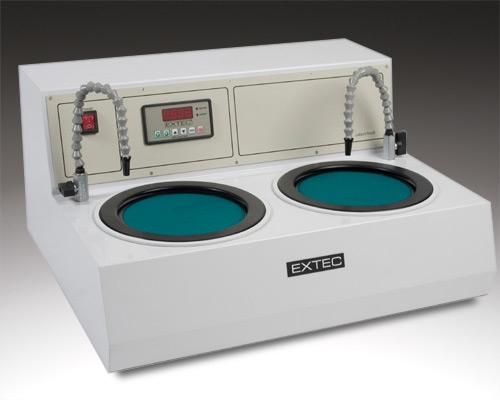

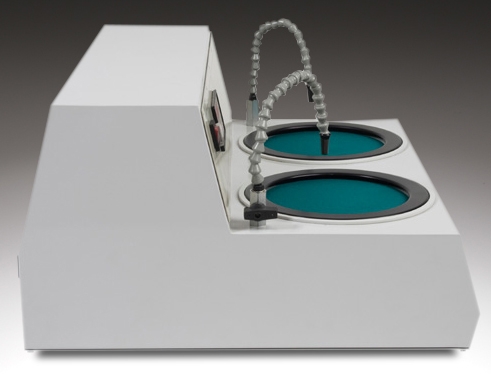

A twin disc polishing machine with a low profile front deck. The machine operates at variable speeds between 50-500rpm with the set speed on a front display panel.

A water lubrication inlet and outlet are located on the rear panel. A control tap and flexible hose is located beside each platen so that water can be directed to any part of the platens during pregrinding.

The Labpol Duo 8 features a single EZ-DRO (digital read out) for simple user operation of the dual platens. Platens can be operated simultaneously at 0-500 rpm in both directions, clock wise (CW) and counter clock wise (CCW).

The unit has a 1HP (0.75 kW) motor and a single controller operating both platens at variable speed between 0-500 rpm.

Specifications

• Motor:
  • Variable Speed: 1.0 HP (.75kW) motor and controller.
• Platen Supports:
  • Quick Release system for changing platens.
• Diameter of Platens:
  • 8" (203mm)
• Lubrication:
  • Water inlet and outlet in rear panel. Flexible tap with flexible hose to direct water to any pat of platen to direct water to any part of platen.
• Electronics:
  • Demand speed between 50-500rpm. Set speed on display.
• Electrical:
  • 110V, 220V
• Dimensions:
  • Width: 25 1/2" (650 mm)
  • Depth:   24" (610mm) (add 1" (30mm) for inlet/outlet on rear panel.
  • Height:  11" (280mm)
• Weight:
  • 70 lbs. (32Kg)
