EXTEC LABCUT® 150 Variable Speed, 3" - 6", includes: 10015 Screw Holder for irregular samples, set of 3 weights, tools and digital rpm indicator, 10153 splash guard and 12050 cutting fluid.
Precision Cutting Without Deformation.

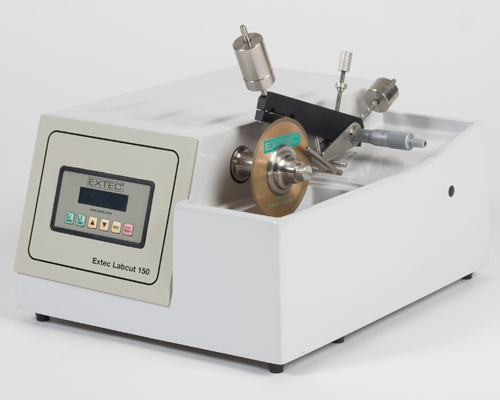

The EXTEC Labcut® 150 Variable Speed Precision Diamond Saw is an attractive, modern styled laboratory instrument designed for precision cutting of a wide variety of materials. Samples can be cut with minimal damage and deformation. The universal design and variable speed aid the precision cutting of fragile and soft materials. Variable wheel rotation speeds range from 0 to 1000 rpm. A variety of sample holders add to the 150’s versatility.
The Labcut 150 is ruggedly constructed from a cast-aluminum frame with stainless steel components providing stability and corrosion resistance in a molded water resistant cabinet. The EZ-DRO™ Easy Keypad operates the powerful belt driven AC 1/4 HP motor with inverter. The sample arm is pivoted and can be counterbalanced to provide low loading conditions on the specimen. It features 25mm micrometer movement that allows positioning of the sample with respect to the wheel.
The Recirculating Coolant System consists of a coolant reservoir with an adjustable power supply, liquid recirculation pump, twin coolant tubes, stainless perforated tray, sample retrieval tweezers and sump drain tool. The system provides adequate coolant flow to the twin coolant tubes located on either side of the cutting wheel. The Recirculating Coolant System accepts EXTEC cutting fluids.
The Labcut 150 will accept 3 inch (75mm), 4 inch (100mm), 5 inch (125mm) and 6 inch (150mm) diameter diamond wafering blades and abrasive cut-off wheels. A transparent polycarbonate splash/safety shield with an integrated safety switch is fitted to prevent operation when the shield is open. An endpoint microswitch indicator can be set to terminate the cutting process at a predetermined depth.
EZ-DRO™ Easy Keypad
Counter Balanace Pivoting Arm
Microswitch for Stopping the Cutting Process at a Preset Depth
Designed for Stability and Corrosion Resistance

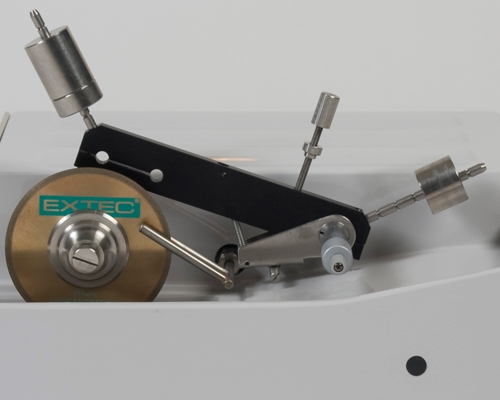

Pivoted Specimen Arm with 25mm Micrometer Movement

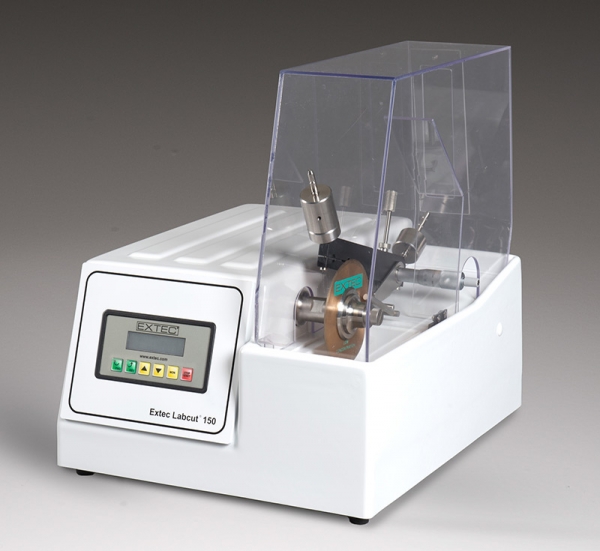

Transparent Polycarbonate Splash/Safety Shield

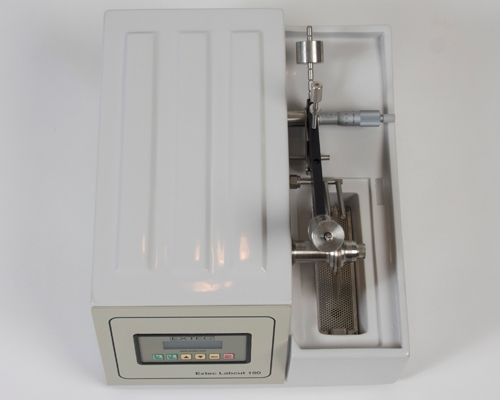

Recirculating Coolant System
Adjustable Power Supply
Liquid Recirculation Pump
Twin Coolant Tubes
Stainless Perforated Tray
Materials: Slicing samples of metals, alloys, composites.
Ceramics: Slicing samples of ceramics.
Semiconductor: Cutting semiconductor crystals and sectioning embedded devices.
Pathology: Cutting bone and teeth material and preparing thin sections. Cutting embedded tissue.
General Physics: Mounting and slicing single crystals along a particular axis.
Geology: Preparing mineralogical sections of rocks.
Paleontology: Preparing sections of fossils in rocks.
Variable Speed 0-1000 rpm
Accepts 3 inch (75mm), 4 inch (100mm), 5 inch (125mm), 6 inch (150mm)
Spindle ½ inch (12.7mm) Stainless steel, belt driven
0-25 mm (>1 inch) 0.01mm (< .0040 inch) Micrometer
Available in 110v and 220v, 1 phase
0.18 kW (1/4 hp) Motor
Dimensions: L 16" X W 12" X H 8" (400 mm x 300 mm x 200 mm)
