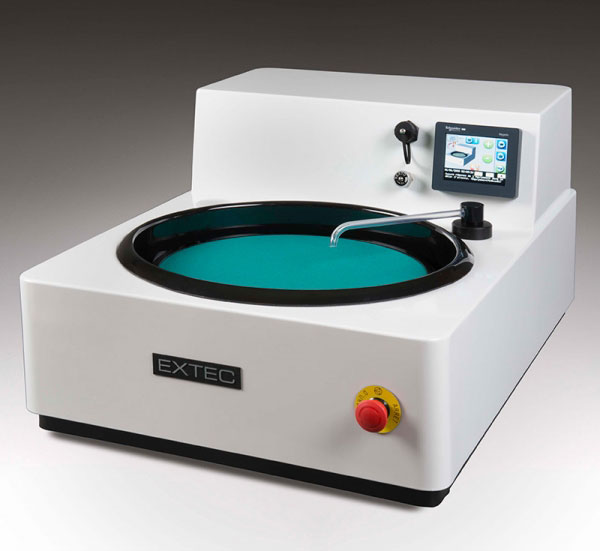

The Extec Labpol 8-12 Advanced Convertible Grinder/Polisher is a versatile compact convertible system that can be configured with 8” (203 mm), 250 mm (10”), or 12” (305 mm) platen.
The Extec Labpol 8-12M Advanced Convertible Grinder/Polisher is a versatile compact convertible system that can be configured, as required, with 8” (203 mm), 250 mm (10”), or 12” (305 mm) platen. To change the configuration, simply remove the insert and lift the platen from the retaining pegs located on the platen base and replace with the new platen size and insert.
The unit is Adaptable to a Semi-Automatic Head. The head features central and variable (0-250N) pressure. When operating with a 12” platen, up to 6 samples can be ground/polished simultaneously. When operating with an 8” or 250 mm up to 3 samples can be ground/polished simultaneously.
The platen is driven by a 0.37kW, 0.5hP motor which is complemented by Highly Efficient Torque Capabilities. The platen can be operated 20-650 rpm in both directions, clock wise (CW) and counter clock wise (CCW).
The Extec Labpol 8-12M Advanced Convertible Grinder/Polisher features a single EZ-TSK (Touch Screen Keypad) for simple user operation. The unit is equipped with a USB port for simple saving and loading of programs.
A water inlet and outlet are located on the rear panel. The retractable faucet features an adjustable water flow and allows for easy cleaning. The unit and operators are protected by a safety solenoid valve.
The optional dispensing unit is a 3 unit doser powered by 3 peristaltic pumps connected to 1 external pump. It is programmed via a touch screen and connected to the grinder/polisher with 1 simple connection. A special nozzle for high viscosity suspensions and a stirrer are both available.
3.5" EZ-TSK Touch screen Keypad
Adaptable to semi-automatic head with central and variable (0-250 N) pressure
USB port to save & load programs
Adjustable water flow with safety solenoid valve
Removable bowl for easy cleaning
Retractable rinsing faucet for easy cleaning
Convertible unit accepts 8” (200 mm) to 12” (305 mm) platen
Variable Speed 20-650 RPM
Available in 110v and 220v, 1 phase
Dimensions: L 26” x W 18” x H 12” (650 mm x 450 mm x 300 mm)
